Luton Van Options
THE MARKET LEADING LUTON VAN BODY FOR LCVS

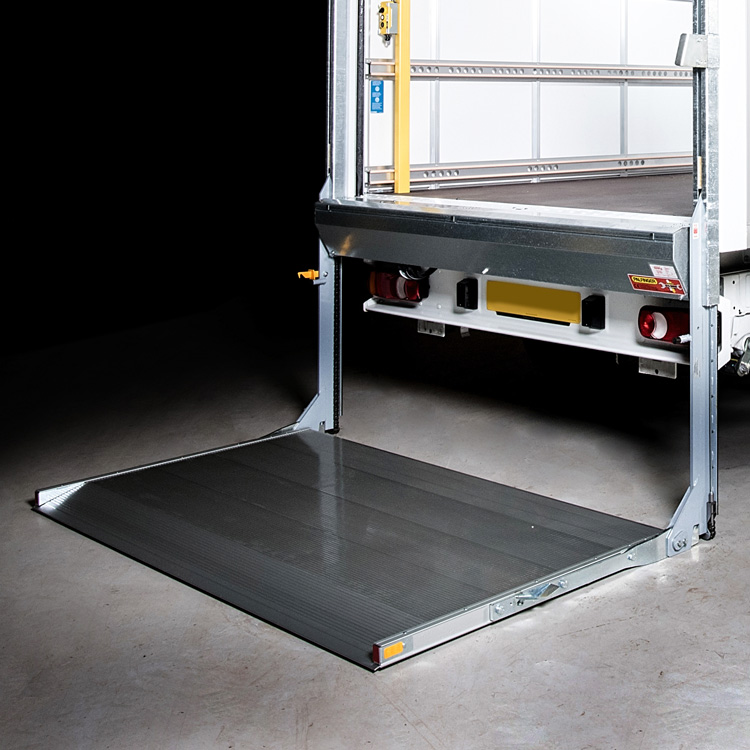

Tail-lift Installation
Ingimex column tail-lift installations are completely integrated with the body structure, giving our tail-lift conversion its market leading installation weight. The tail-lift installation is designed to European standards and is load tested to 2.1 x the lifting capacity and cycle tested to 10,000 hours using our onsite test equipment.
Livery
Ingimex can arrange fitting of livery to customer’s requirements during production of the body.
Telescopic Load Poles
Exclusively manufactured by Ingimex, telescopic load poles fit within the load lock track and allow greater flexibility when securing loads. Each load pole is designed and tested to take a 400kg uniformly distributed load.
LUTON TAIL-LIFT OPTIONS
Ingimex column tail-lift installations are completely integrated with the body structure, giving our tail-lift conversion its market leading installation weight. The tail-lift installation is designed to European standards and is load tested to 2.1 x the lifting capacity and cycle tested to 10,000 hours using our onsite test equipment.
Palfinger
The RQU527-ING lift is a lightweight platform designed to ensure you retain the maximum payload on your vehicle.
It features a steel frame and aluminium platform and is designed to accommodate quicker repairs if you damage the platform.
DEL
DEL’s short column tail lift, the DL500, offers an aluminium platform with a high grade steel frame to reduce installation weight.
The torsion assisted platform ensures minimal effort required to open and close, and all steel parts are plated or galvanised for maximum weather protection.
Extended
Our extended platform tail lift offers all the benefits of the standard Palfinger lift, with a 1200mm platform length and a folding trailing edge that can act as roll stops for increased safety when wheeling trolleys on and off your vehicle.
| Platform Style | Palfinger | Del | Extended |
|---|---|---|---|
| Platform Length (mm) | 900 | 815 | 1200 |
| Trailing edge depth (mm) | 184 | 150 | TBA |
| Platform width (mm) | 2036 | 2036 | 2036 |
| Folding Trailing Edge | – | – | Yes |
* Fully extended platform depth, 742mm when folded
Wide range of optional extras
Our Luton Van bodies support a wide range of bolt-on modifications to suit your particular requirements, either during initial manufacture or on existing vehicles, contact us to place your orders.
