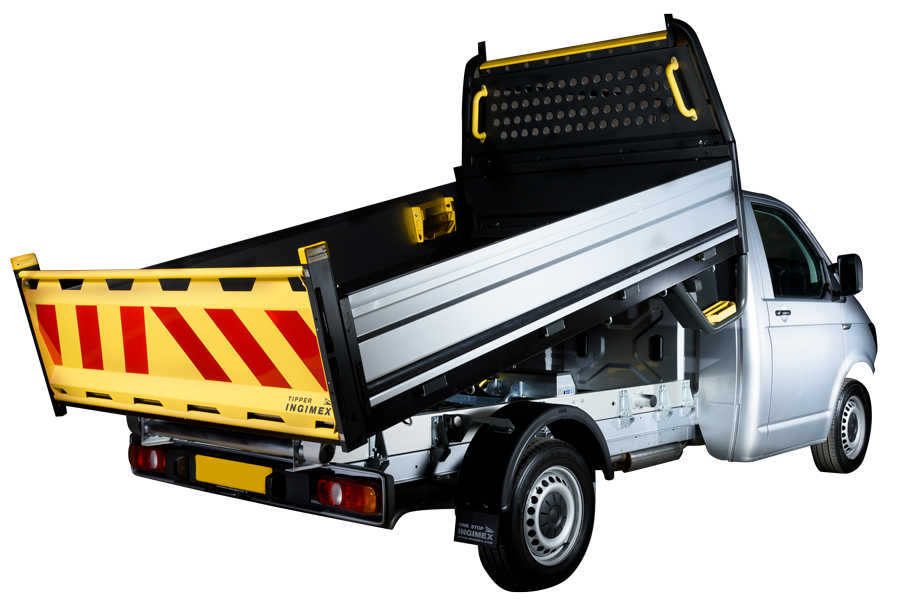

Volkswagen Transporter Tip-up

2017 – Present

THE MARKET LEADING TIPPER BODY FOR VW TRANSPORTERS

Suitable for both carrying and tipping loads, the Ingimex tipper is a lightweight, high strength body with a market leading payload.

Designed and tested to the latest European standards, fitted with an array of features as standard, and easily adapted to allow for the addition of optional modifications; the Ingimex tipper is the perfect partner for your Volkswagen Transporter chassis.

Curved gantry to suit the profile of the chassis

Platform is made from high tensile steel and dip e-coated in a 6 stage process for a long lasting finish

Under-body stirrup step fitted as standard to allow easy access to the body

Double skinned aluminium sideboards used throughout, so your body will look good for years

Super strong and striking  tailboard with side mounted locks – no nasty finger traps and a big tipping area

Practical integrated tailboard top lashing rail and high visibility engineering grade conspicuity markings as standard

Designed, manufactured and tested in the uk

Comes with a 3 year ingimex warranty as standard

Volkswagen Transporter Chassis options

The Ingimex Volkswagen Transporter Tipper range is available through the Crafter conversion scheme. Additionally, Ingimex can provide post production conversions for used or in-service Volkswagen Crafter chassis cabs.

CAB STYLE S/C
FRAME LENGTH LWB
REAR WHEEL SRW
(X)WHEEL BASE(mm) 3400
(A)Internal Length(mm) 2710
(B)Internal Width(mm) 1868
(B)External Width(mm) 1999
(C)Sideboard Height(mm) 600
(D)Tail-board-Height(mm) 400
(E)Overall Length(mm) 5375
Payload (kg) Up to 1000

Wide range of optional extras

Our Volkswagen Transporter Tipper body supports a wide range of bolt-on modifications to suit your particular requirements, either during initial manufacture or on existing vehicles.
